Editable template

Hello everyone,

In this post I will try to throw some light on editable templates, as part of this we will start with comparison between static template and editable templates.

Static template	Editable templates
Static templates are created by developers .	Editable templates are created by template-author (non-developers)
Static templates are stored in / apps	Editable templates are stored in / conf
Once page is created and if we make any changes on static template that won’t reflect on existing created pages	Dynamic connection between template and pages will retain so whenever we do any change in editable template it will reflect on new and existing pages as well.
Design mode is available for applying page design.	Design is controlled by content and page policies.

Now let's see how to create editable templates.

If you are creating maven project using 6.3 this folder structure will be already there you don't need to create template configuration.

If you are creating it directly in crx follow below steps.

Steps:

1. Go to tools --> General --> Configuration browser -->Open Configuration browser --> Click Create on right side

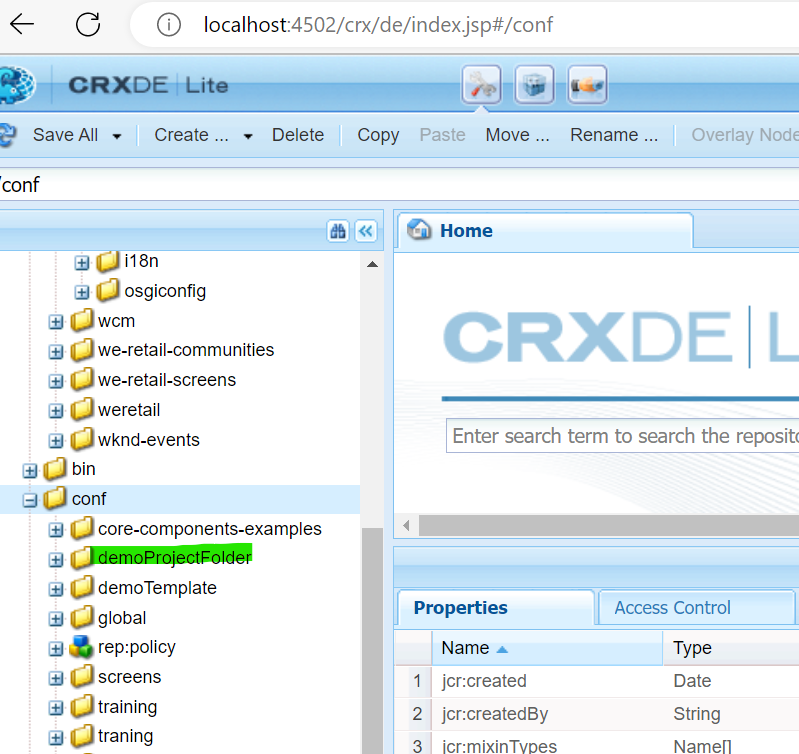

2. Give any project specific name and check the Editable Templates from checkbox list. Same folder will be added to conf folder in crx with basic hierarchy of template.


Now the folder structure is ready so we can create the template to create template we can use OOTB template type or we can create our own template type. OOTB template type are stored under /libs/settings/wcm/template-types. template-type creation is the job of developers.

template-type act as template for our template say for example OOTB html5page template-type act as template when we create any of our own template using html5page, what structure we have in template-type the same will get appear on our template.

With template type we can define page component for templates

How to create template-type

Go to previously created configuration_folder/settings/wcm/template-types in our case it is  /conf/demoProjectFolder/settings/wcm/template-types then create node of type cq:Template, under this we need to create few nodes like initial, jcr:content, policies and thumbnail.png

1. Start with jcr:content node of type cq:PageContent , add  jcr:title  ,  jcr:description  to jcr:content node.

<?xml version="1.0" encoding="UTF-8"?> <jcr:root xmlns:cq="http://www.day.com/jcr/cq/1.0" xmlns:jcr="http://www.jcp.org/jcr/1.0" xmlns:mix="http://www.jcp.org/jcr/mix/1.0"
    jcr:mixinTypes="[mix:lockable]"
    jcr:primaryType="cq:Template"
    ranking="{Long}1">
    <jcr:content
        jcr:description="Template Type for sample project."
        jcr:primaryType="cq:PageContent"
        jcr:title="Sample template Type"/>
</jcr:root>

2.Now create node with name initial of type cq:Page now under initial node create a node with name jcr:content of type cq:PageContent. this jcr:content node will have a property called sling:resourceType which will be pointing to page component, we can point to OOTB foundation page component, or we can create our own, if don't create our own page component we won't be able to do any customization/ to render any anything like client library  on template that we can do using page component.

<?xml version="1.0" encoding="UTF-8"?>
<jcr:root xmlns:sling="http://sling.apache.org/jcr/sling/1.0" xmlns:cq="http://www.day.com/jcr/cq/1.0" xmlns:jcr="http://www.jcp.org/jcr/1.0"
    jcr:primaryType="cq:Page">
    <jcr:content
        jcr:primaryType="cq:PageContent"
        sling:resourceType="sampleProject/components/structure/basePage"/>
</jcr:root>

for policies and structure node you can copy all the default from html5page template-type for structure/jcr:content you need to change sling:resourceType which will be pointing to our own page component. Under /structure/jcr:content/ we have root node with property sling:resourceType String wcm/foundation/components/responsivegrid this property will bring layout container on template.Now lets start with the page component for our template-type

policies node structure:

<?xml version="1.0" encoding="UTF-8"?><jcr:root xmlns:sling="http://sling.apache.org/jcr/sling/1.0" xmlns:cq="http://www.day.com/jcr/cq/1.0" xmlns:jcr="http://www.jcp.org/jcr/1.0" xmlns:nt="http://www.jcp.org/jcr/nt/1.0"
    jcr:primaryType="cq:Page">
    <jcr:content
        cq:policy="wcm/foundation/components/page/default"
        jcr:primaryType="nt:unstructured"
        sling:resourceType="wcm/core/components/policies/mappings">
        <root
            cq:policy="wcm/foundation/components/responsivegrid/default"
            jcr:primaryType="nt:unstructured"
            sling:resourceType="wcm/core/components/policies/mapping"/>
    </jcr:content>
</jcr:root>

structure node structure:

<?xml version="1.0" encoding="UTF-8"?> <jcr:root xmlns:sling="http://sling.apache.org/jcr/sling/1.0" xmlns:cq="http://www.day.com/jcr/cq/1.0" xmlns:jcr="http://www.jcp.org/jcr/1.0" xmlns:nt="http://www.jcp.org/jcr/nt/1.0"
    jcr:primaryType="cq:Page">
    <jcr:content
        cq:deviceGroups="[mobile/groups/responsive]"
        jcr:primaryType="cq:PageContent"
        sling:resourceType="sampleProject/components/structure/basePage">
        <root
            jcr:primaryType="nt:unstructured"
            sling:resourceType="wcm/foundation/components/responsivegrid"/>
        <cq:responsive jcr:primaryType="nt:unstructured">
            <breakpoints jcr:primaryType="nt:unstructured">
                <phone
                    jcr:primaryType="nt:unstructured"
                    title="Smaller Screen"
                    width="{Long}650"/>
                <tablet
                    jcr:primaryType="nt:unstructured"
                    title="Tablet"
                    width="{Long}1200"/>
            </breakpoints>
        </cq:responsive>
    </jcr:content>
</jcr:root>

Now your template-type is ready you can create template using your own template-type

Go to Tools-->General-->Templates -->open the configuration folder previously created i.e. demoProjectFolder -->click Create --> you should see your template type here like below.

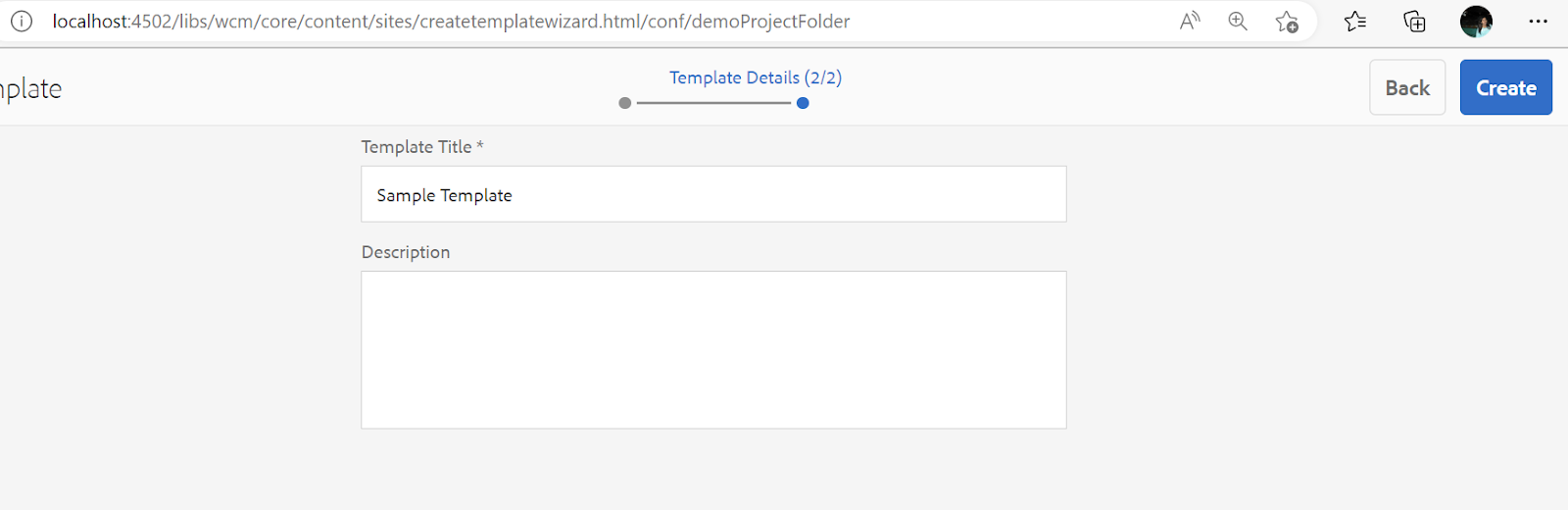

Select custom template type -->Next -->give template title, description --> Create -->on next Popup you have 2 options Done and Open go with anything

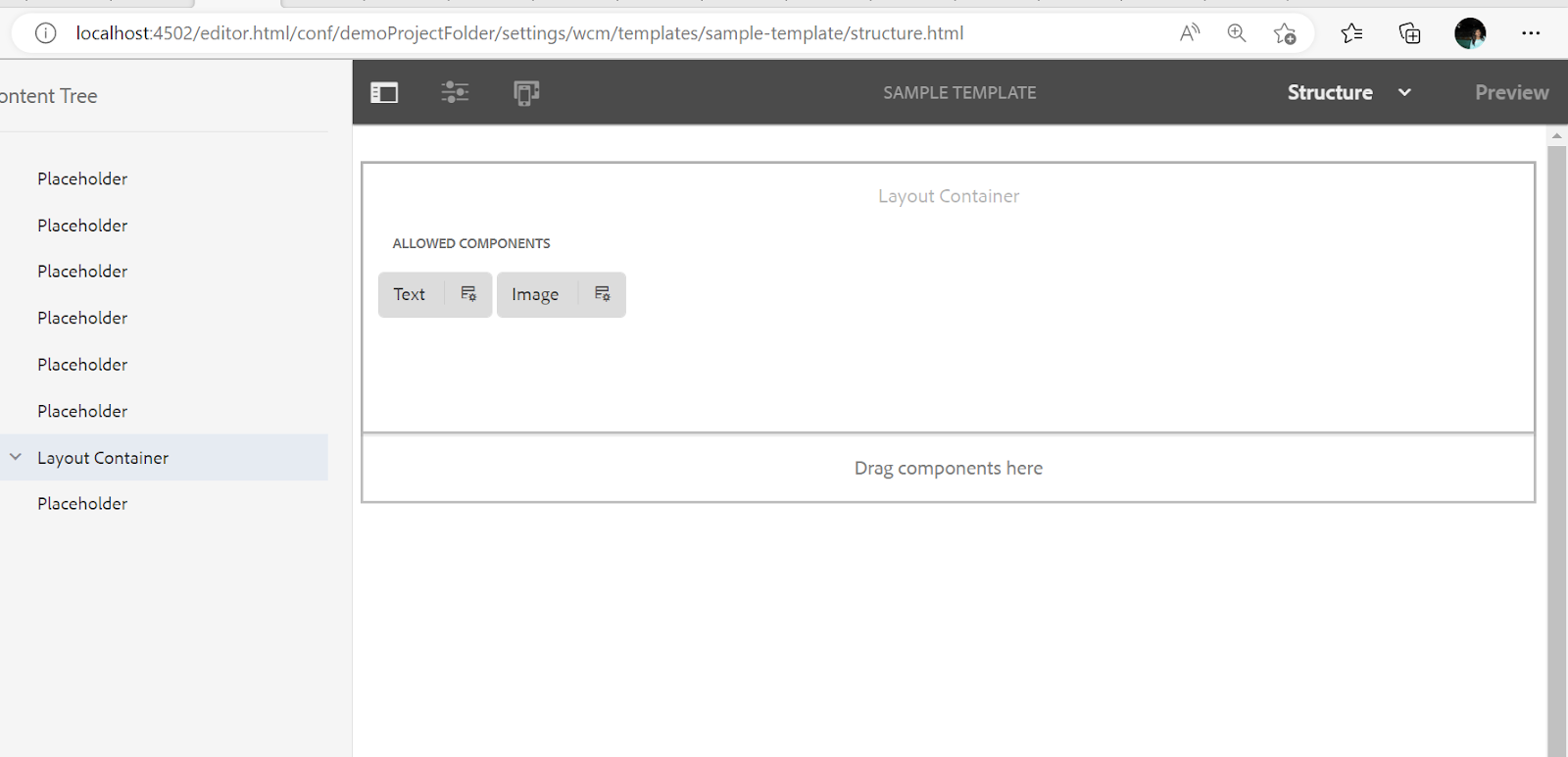

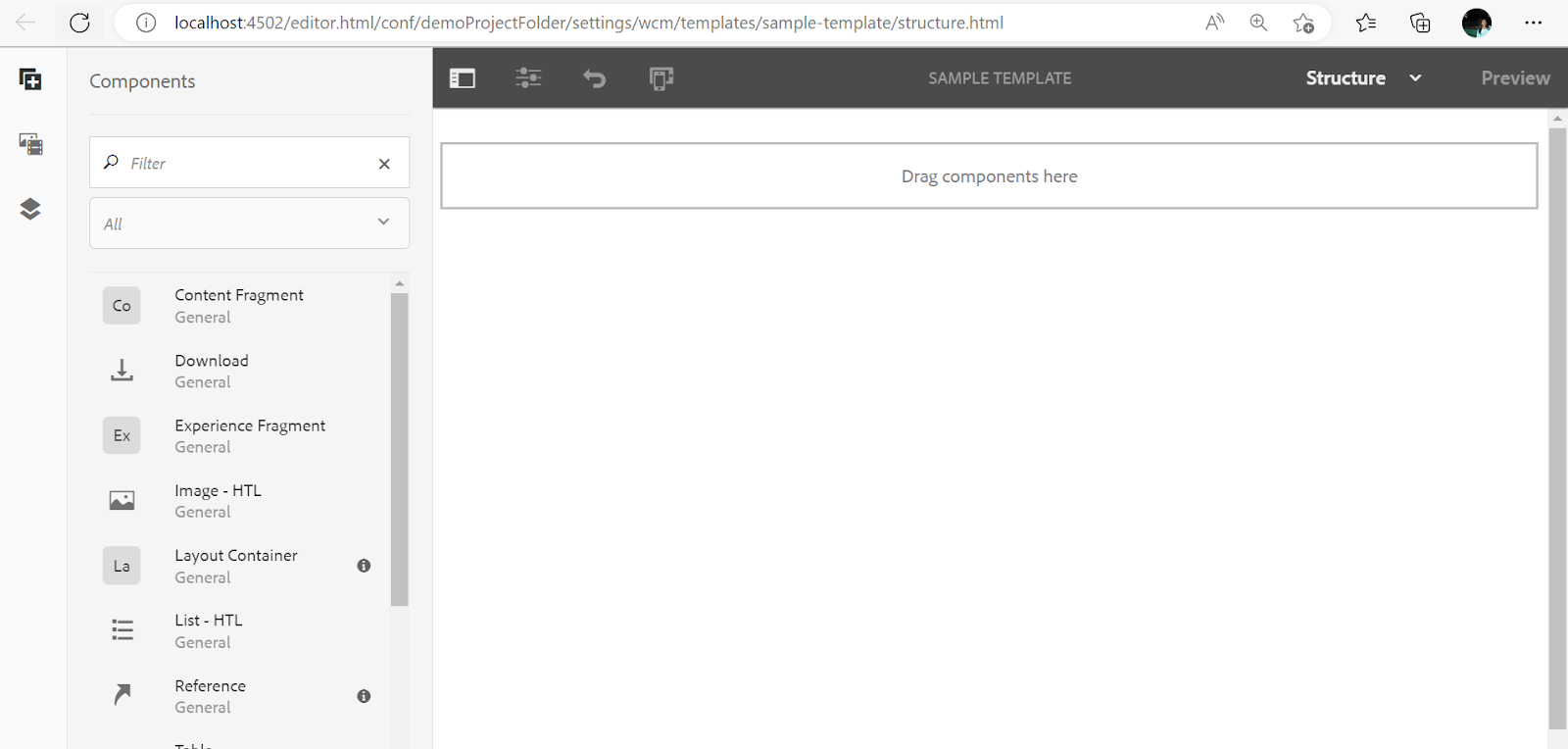

when you open the template it will look like this

Here we can configure structure, initial content, layout of the template and content policies.

Structure: Structure allow you to define content and component for your template.

You can lock and unlock structure content if its content is lock on template you will not able to edit it on page to edit the content on page content need to to unlock.

Initial: Initial Content defines content that will appear when a page is first created based on the template.

Initial content can be edited and deleted on page.

Any existing page initial content will not get updated if the changes in initial content are done after page creation.

Layout: you can define the template layout for different devices.

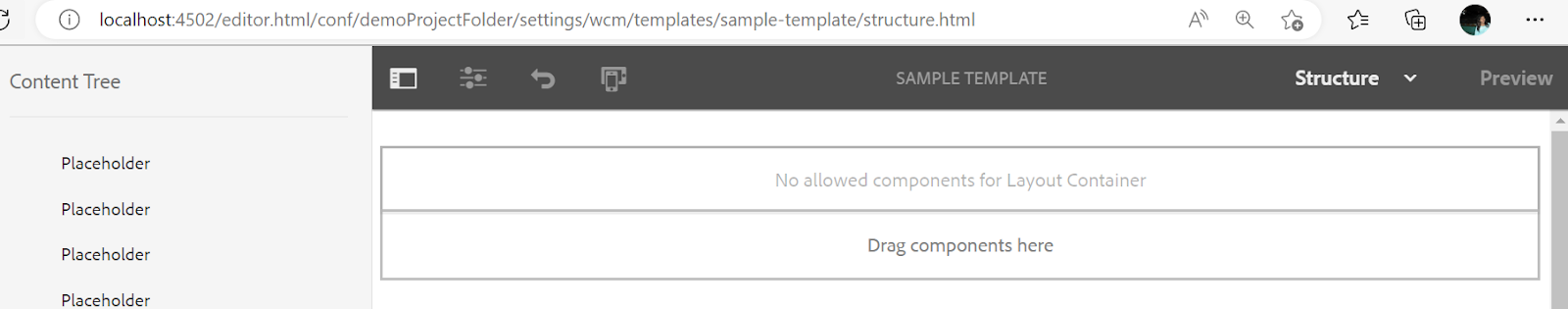

Content policy : to allow the component on page when creating using this template.

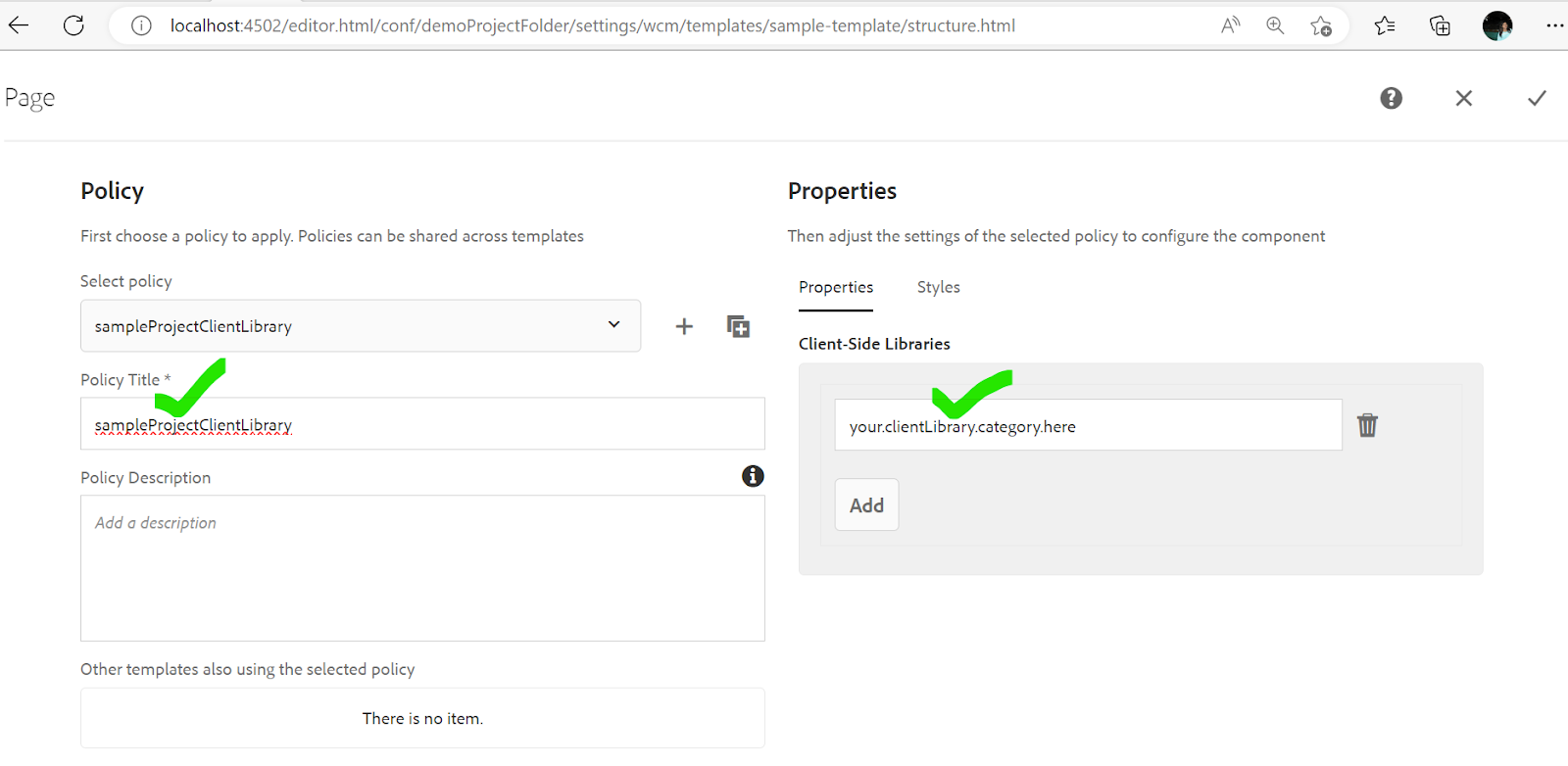

Page Policy: page policies are added to include client library to the template so when we are creating pages using this template those pages will have the same client library we have added thru page policies.

Both Content policies and page policies are stored in /conf/demoProjectFolder/settings/wcm/policies, so If you want deploy the policies as part of package then add the /conf and policies node path in META.INF filter.xml.

Now enable the component to create pages using template to enable the template tools-->general>templates -->select the template you created and click enable

Finally you need to allow the template where you want to create pages using it.

KEEP EDUCATING YOURSELF!!!!
.
